Well let's start with the release of EIGHT
new multiviewer models!

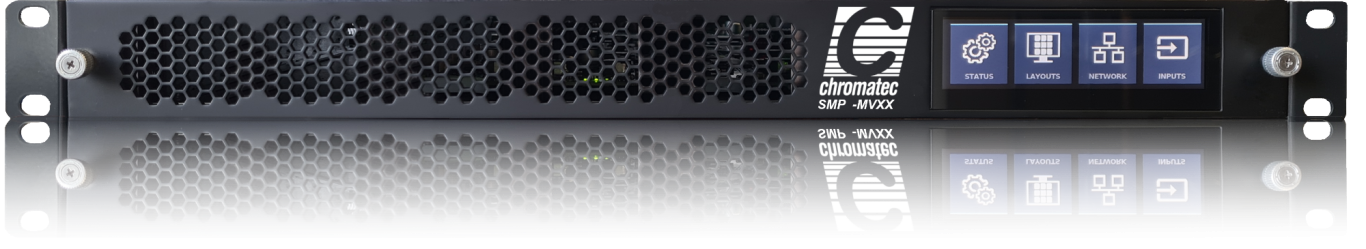

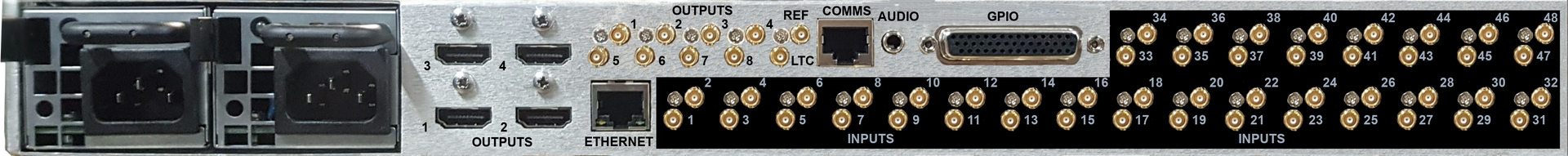

SMP-MV16/32/48 is our latest cost-effective range, with many new features and increased performance. This broadcast-quality multiviewer supports up to 48 SDI inputs via HD-BNC with 4 independent outputs in 1RU format.
All image processing and control cards are modular and hot-swappable. MV configuration may be 16,32 or 48 channels depending on the number of image processing cards fitted.
Ideal for use in small OB trucks, smaller studios, and anywhere where high quality 4K monitoring of up to 48 inputs.
How about integrated 12G-SDI routing?

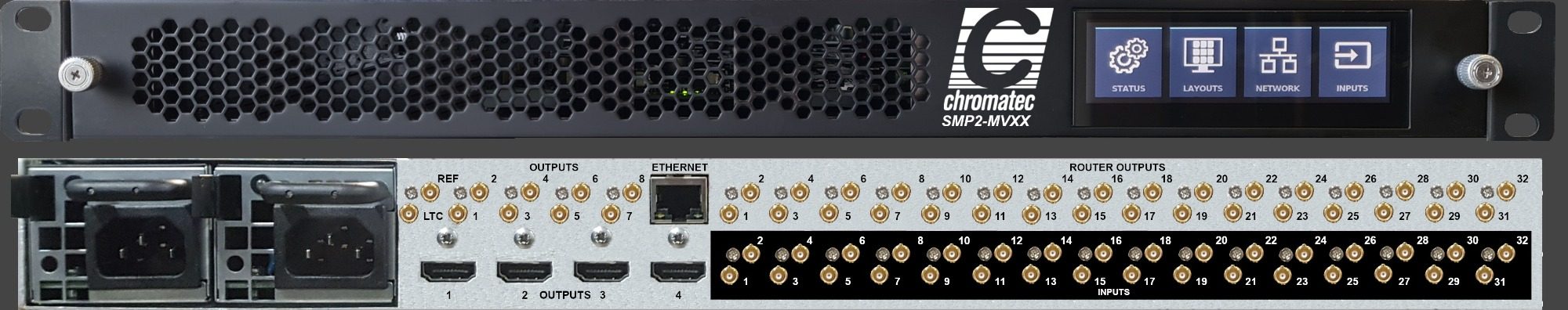

SMP2-MV16/32R-12 is an compact fully-featured UHD broadcast multiviewer AND router in 1RU format.
Independent routing functionality to the multiviewer, potentially reducing cost and simplifying overall cabling of single link 12G-SDI ST-2082 sources. Routing control is via browser or 3rd party controller.
This model supports up to 8 SDI/4 HDMI 2.0 outputs at FHD resolution or 4 single-link 12G-SDI/2 HDMI 2.0 outputs at UHD resolution.
Enterprise-class Multiviewer with huge
channel density and 16 head outputs!

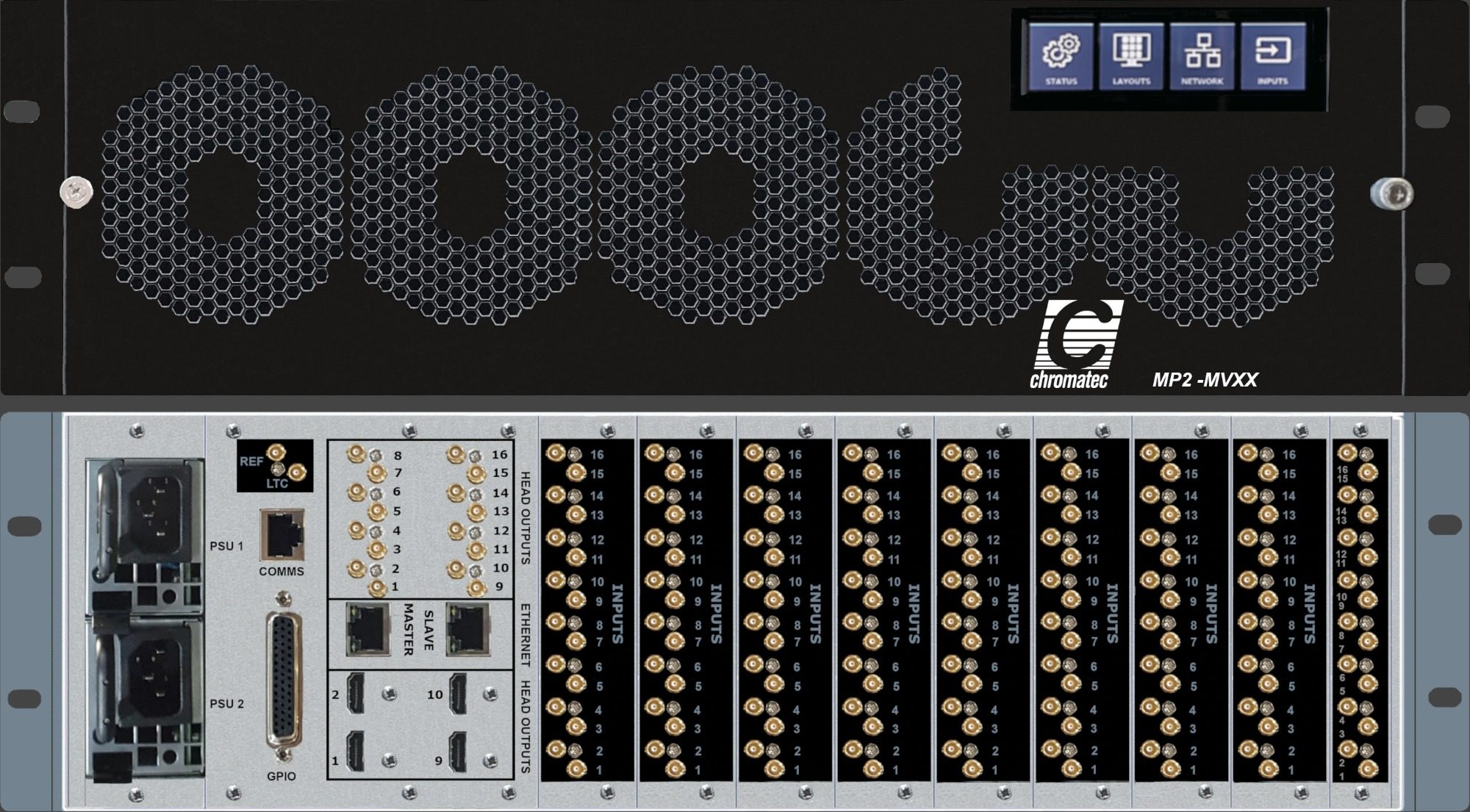

MP2-MVxx is a 3RU cost effective modular multiviewer that can be configured from 16 inputs to 144 in steps of 16.
Rear interface cards can be specified as 3G-SDI capable or single link 12G-SDI. The multiviewer has 8 standard outputs which can be expanded to 16 if additional heads are required.
This offers unprecedented density for use in OB vans or studios requiring a large number of video feeds. Fully featured 3rd party support for use in conjunction with external large router.
Ultimate layout flexibility!

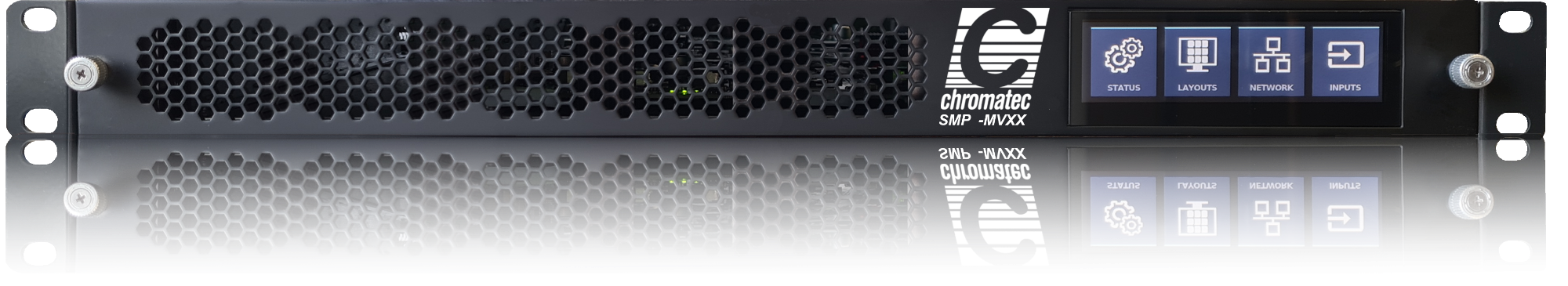

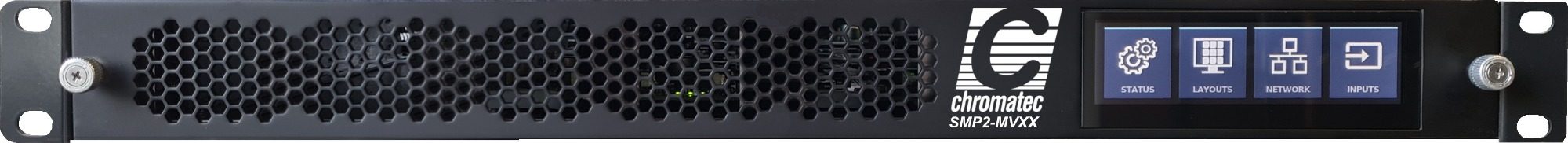

SMP2-MV16/32/48-12 is a range of UHD compact multiviewers with upstream routing to ensure that even the most demanding layouts can be met.
Featuring 12G-SDI capable inputs and single link 12G-SDI outputs/HDMI 2.0 outputs as standard.
The compact 1RU format with up to 48 inputs makes it ideally suited for OB vans or small studios.
Simply cost-effective/reliable/compact multiviewers...
If you have any special requirements then please don't hesitate to contact us - your challenge is our opportunity!
Specifications are subject to change without prior notification
