SMP2-MV16/32/48-12
- Ideal for demanding layouts
- Optional 16/32/48 inputs
- Fully Featured
- Compact 1RU size
- High density multiviewer
- Up to 8 SDI head outputs
- Up to 4 HDMI 2.0 outputs
- Cost effective
- UHD inputs and Outputs
Why choose this model?
Complete solution

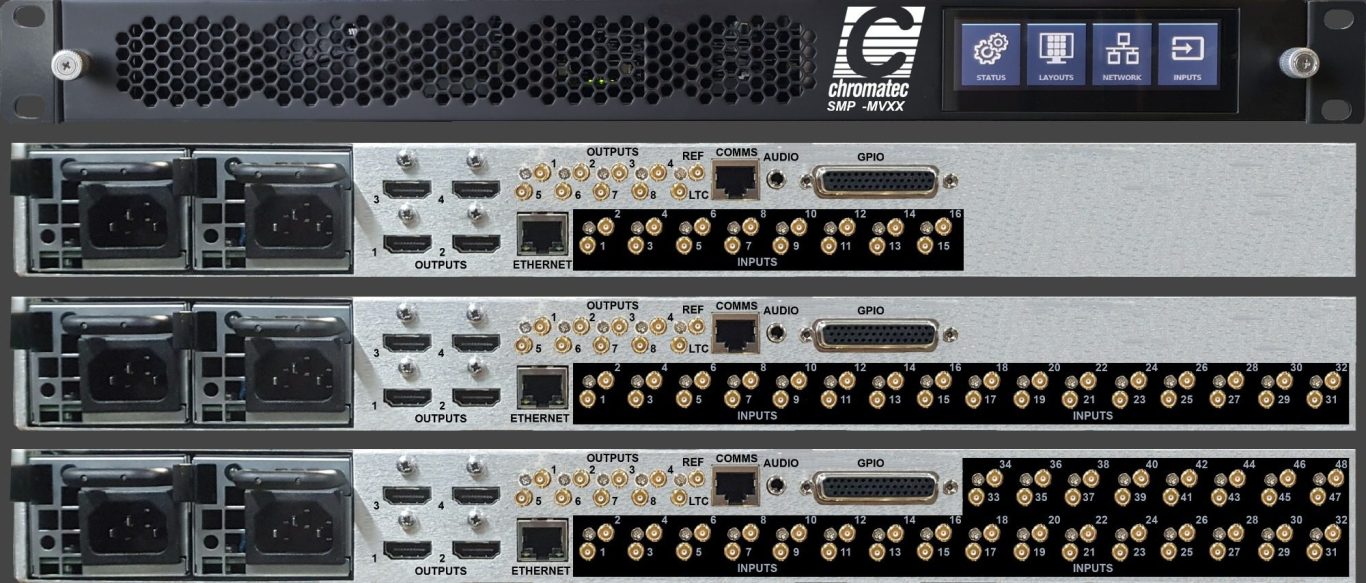

These models are fully-featured broadcast-quality multiviewers in compact 1RU format with up to 48 inputs via HD-BNC and supports inputs up to UHD (12G-SDI) SMPTE ST-2082.
Multiviewer inputs are via an integrated 32x32 12G-SDI router which allows up to 32 inputs to access the first 32 scalers in
order to meet even the most demanding layouts.
For 2K FHD operation - up to 8 independent outputs are
supported with simultaneous SDI and HDMI outputs at 3G-SDI FHD50/59/60 resolution.
For 4K UHD operation - up to 4 independent outputs are
supported with simultaneous SL-12G-SDI ST-2082 and HDMI 2.0 outputs at UHD50/59/60 resolution.
All image processing and control cards are modular and hot-swappable.
MV configuration may be 16, 32 or 48 channels depending on the number of image processing cards fitted. Sources can be displayed on any output screen with arbitrary size and location. Sources may be duplicated in the same location on any or ALL screens without consuming additional scaler resources.
Power supplies with IEC inlets are hot-swappable and power sharing. Intelligent power supply modules are continuously logged for status, temperature and efficiency. Quiet low-noise fans adapt to frame temperature.
Remote control over ethernet via an integrated HTML5 browser.
A long-life colour touch screen LCD displays MV and source status and can be used for local control.
Ubiquitous HTML5 control
The integrated web-browser uses ubiquitous HTML5 for maximum interoperability.

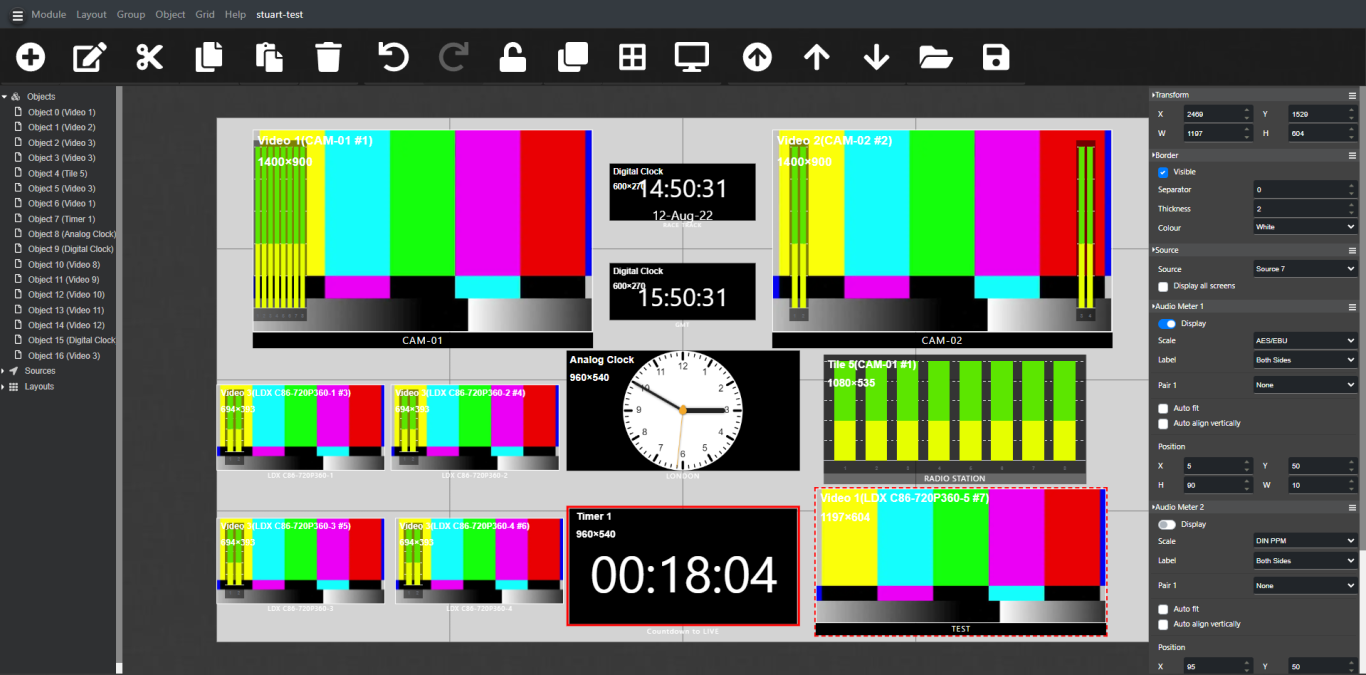

Tiles are created and customised in the layout workspace. Navigation is simple and intuitive using the Object selection
filter on the left panel.
The main parameters for each object can be quickly adjusted
on the right hand panel with changes reflected immediately on the layout before committing to the multiviewer.
The control software is offered free of charge, including future updates for the longevity of the product.
Great features
Up to 16 audio channels can be configured for each source. Dolby E Metadata can be configured with up to 8 channels per source pair.

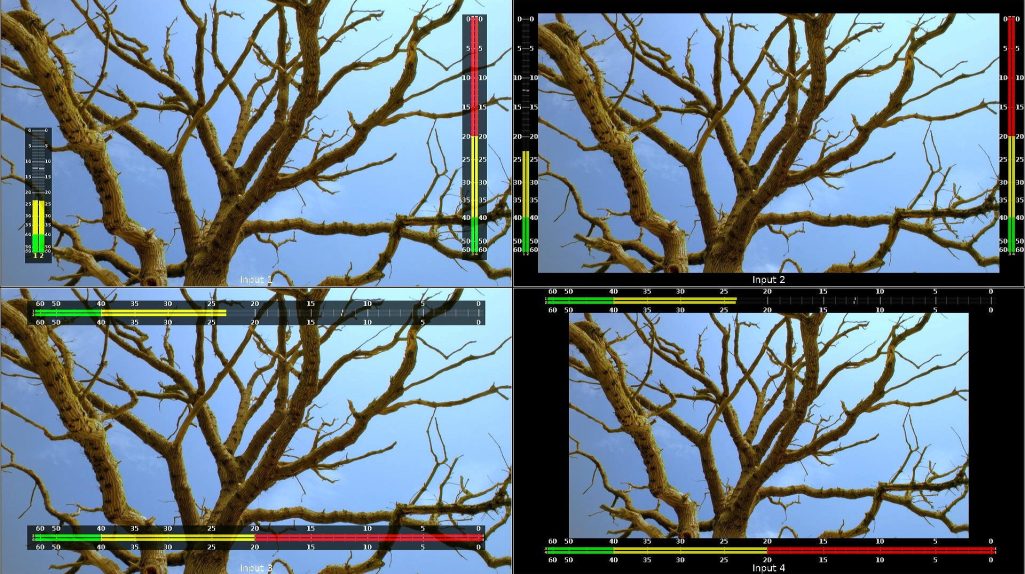

As shown above, meters can be horizontal or vertical and
located inside or outside of the image whilst still maintaining the correct aspect ratio.
There is no restriction on the size and location of any of the
objects which can be of type: Video, Audio, Text, Clock, Logo or Timer up to a maximum of 128 tiles.
Clock/date display data can be derived from the system clock, NTP synchronisation, LTC, or VITC from a chosen SDI input.
D-VITC and ATC decoding and display is supported.
The multiviewer includes a number of factory layouts. Customised layouts can be stored and recalled as required.
Hardware and software tallies for each source. Up to two lines of UMD text can be left, centre, or right justified and may be placed anywhere in the tile.
UNICODE is used for storing UMDs. Any True-Type font can be installed to allow any set of characters to be displayed.
Specifications are subject to change without prior notification
